There are two variations of
the War Department's Finished View Mark. The primary
difference is in the broad arrow itself. This example, with
the fat lines and flares, is a London area mark, as it was
applied in the London proof area. This straight and
symmetrical broad arrow in this example is from the
Birmingham proof area.
Sometimes, this mark is seen
in an abbreviated form as only the broad arrow. This example
is on the rear sight bed of a Martini-Henry Mark III

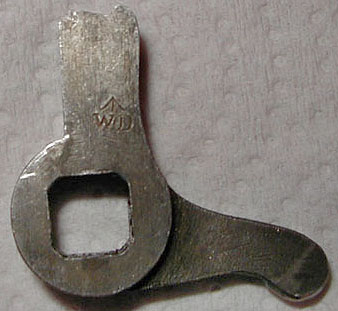

Infantry Rifle. A Birmingham area War
Department Finished View Mark on the tumbler of a

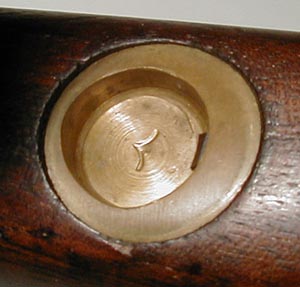

Martini-Henry. A London area type broad
arrow in the middle of the operating lever retaining
cup.
Locations I have noted the War Department Finished View Mark, or broad arrows, on metal parts...
1. Action body - both sides, bottom, beneath operating lever, and bottom, in front of trigger guard. Also, every part within the action body, with the exception of screws and springs bear this marking
2. Barrel - both sides, near knoxform, bottom of barrel
3. Butt Plate - at the top
4. Operating Lever Retaining Cup - see picture above
5. Operating Lever - about an inch down from the trigger guard, near the inspector's view mark
6. Rear Sight Bed - forward of the screw, and on the left side, near the hinge pin
7. Rear Sight Leaf - near the hinge, typically also seen next to an inspector's view mark in this area
8. Barrel Bands - upper and lower
9. Sling Swivels
10. Cocking Indicator
11. Trigger
12. Cleaning Rod
